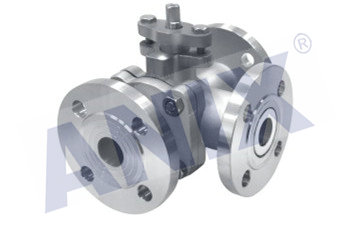

3 WAY flanged ball valve

Ball valve(flanged,wafer)

There are two types of tee ball valves, L shaped and T shaped types.
The L shaped (Q44F) tee ball valve is used for switching the flow direction of the media and can get two channels vertical to each other interconnected; the T shaped (Q45F) tee ball valve is used for diverting and converging the media and switching the flow direction.
The T shaped tee can get all the three or two of the three channels interconnected with each other. Usually, the tee ball valve is of two-seat structure; four-seat structure can also be used upon request by the users.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design Reference: GB, ASME
Design Standard: GB/T 12237, ASME B16.34
Face to Face: GB/T 12221, ASME B16.10
Flanged Ends:GB/T 9113 JB 79, ASME B16.5
Test and Inspection:GB/T 26480, API 598

Performance Specification
Nominal pressure:1.6Mpa,150lb
Strength test:2.4,3.0 MPa
Seal tese:1.8,2.2MPa
Gas seal test:0.6MPa
Valve body material:A105(C),F304(P),F304(PL),F316(R),F316L(RL)
Suitable medium:water,steam,oil,products,nitric
Suitable temperature:-29°C~150°C

Product Structure
