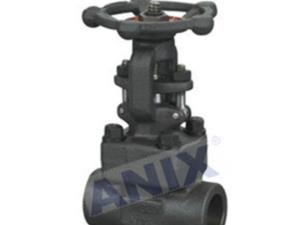

American Standard Forged Steel Gate Valve

Screwed 、Clamp 、Welded vavle

The American standard forged steel gate valve of Anix is of pressure self tightening seal structure. It is welding connection at two ends of the branch pipe of the valve. The valve flap and valve seat sealing faces are made of cobalt based hard alloy by plasma spray welding, and have good wearing and scratch resistant performance. The valve rod is subject to anti-corrosion nitrogen treatment and thus has good corrosion and scratch resistant performance.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design and manufacture: API 602, BS5352, ASME B16.34
Connecting size: ASME B16.5, ASME B16.25
Test and inspection: API 598

Performance Specification

Nominal pressure:150~800LB

Strength test:15XPN MPa

Seal tese:1.1XPN MPa
Gas seal test:0.6MPa
Valve body material:A105(C),F304(P),F304(PL),F316(R),F316L(RL)
Suitable medium:water,steam,oil,products,nitric
Suitable temperature:-29°C~425°C

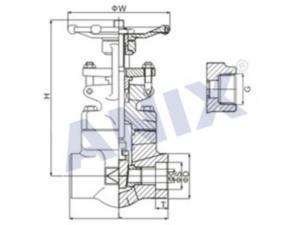

Product Structure
