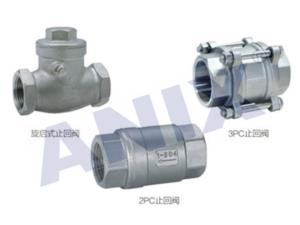

Female Thread Check Valve

Screwed 、Clamp 、Welded vavle

The female thread check valve of Anix has simple structure, small volume, light weight, smooth flow channel and small fluid resistance. The valve flap can fully open subject to a very small pressure difference. The valve is simple in structure, easily maintained and easily dismantled and replaced as the seal ring is normally removable. There are various types of thread for selection: G·NPT, BSPT, BSP DIN259/2999.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Performance Specification

Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Strength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(high pressure):1.8,2.8,4.4,7.1MPa
Applicsble temperature:-29~150°C
Applicsble media:H14/12H-(16-64)C Water.Oil. Gas

                         H14/12H-(16-64)P Nitric acid
                          H14/12H-(16-64)R Acetic acid

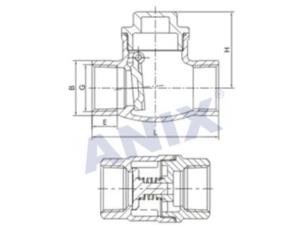

Product Structure
