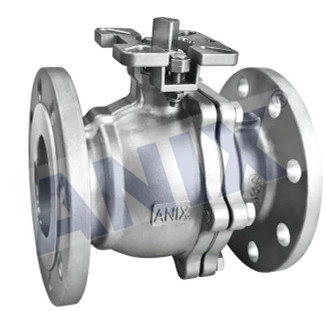

JIS ANSI high platform ball valve

Ball valve(flanged,wafer)

The Japanese standard flange ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure;
it can also be customized according to the requirements of the clients or the working conditions.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Technical code: Japanese standard
Design standard: JIS B2071
Structural length: JIS B2002
Connecting flange: JIS B2212, B2214
Test and inspection: JIS B2003

Performance Specification
Nominal pressure: 10, 20K
Strength test: 2.4, 5.8Mpa
Seal test: 1.5, 4.0Mpa
Back seal test: 1.5, 4.0Mpa
Gas seal test: 0.6Mpa
Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL)
Applicable media: water, oil, gas, chemical industry, power stations, etc.
Applicable temperature: -29℃ to 180℃

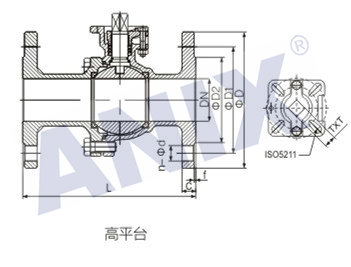

Product Structure
