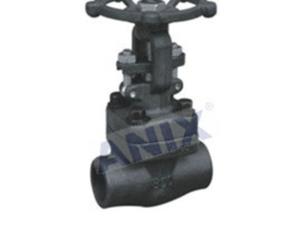

American Standard Forged Steel globe valve

Screwed 、Clamp 、Welded vavle

The high temperature and high pressure globe valve of Anix has a middle cavity of self tightening seal structure with good sealing performance. It is welded structure at two ends of the branch pipe. The valve flap and valve seat sealing faces are made of Stellite cobalt based hard alloy by buildup welding, and have good wearing, high temperature and scratch resistant performance. The valve rod is subject to tempering and surface nitrogen treatment. The bonnet packing box is of adequate depth, and the packing is added with corrosion inhibitor and sealed reliably. The valve is of back seal structure, which ensures no leakage along the valve rod during operation of the valve.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design and manufacture: API 602, BS 5352, ASME B16.34
Connecting size: ASME B16.5, ASME B16.25
Test and inspection: API 598

Performance Specification

Nominal pressure:150~800LB

Strength test:15XPN MPa

Seal tese:1.1XPN MPa
Gas seal test:0.6MPa
Valve body material:A105(C),F304(P),F304(PL),F316(R),F316L(RL)
Suitable medium:water,steam,oil,products,nitric
Suitable temperature:-29°C~425°C

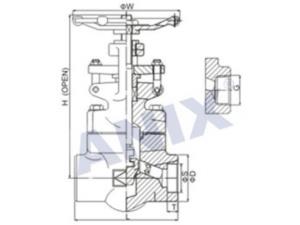

Product Structure
