Stainless steel Angle seat valve

Screwed 、Clamp 、Welded vavle

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards

Design and manufacture as:GB/T 12235、ASME B16.34

End flange dmension as:JB/T 79、ASME B16.5、JIS B2220

The thread ends conform to:ISO7-1、ISO 228-1etc.

The butt weld ends conform to:GB/T 12224、ASME B16.25

Clamp ends conform to:ISO、DIN、IDF

Pressure test as:GB/T 13927、API598

Performance Specification

Nominal pressure:0.6-1.6MPa,150LB,10K
Strength test:PNx1.5MPa
Seal tese:PNx1.1MPa

Gas seal test:0.6MPa

Valve body material:CF8(P),CF3(PL),CF8M(R),CF3M(RL)

Suitable medium:water,steam,oil,products,nitric
Suitable temperature:-29°C-150°C

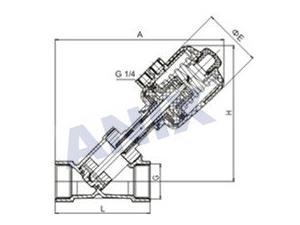

Product Structure
