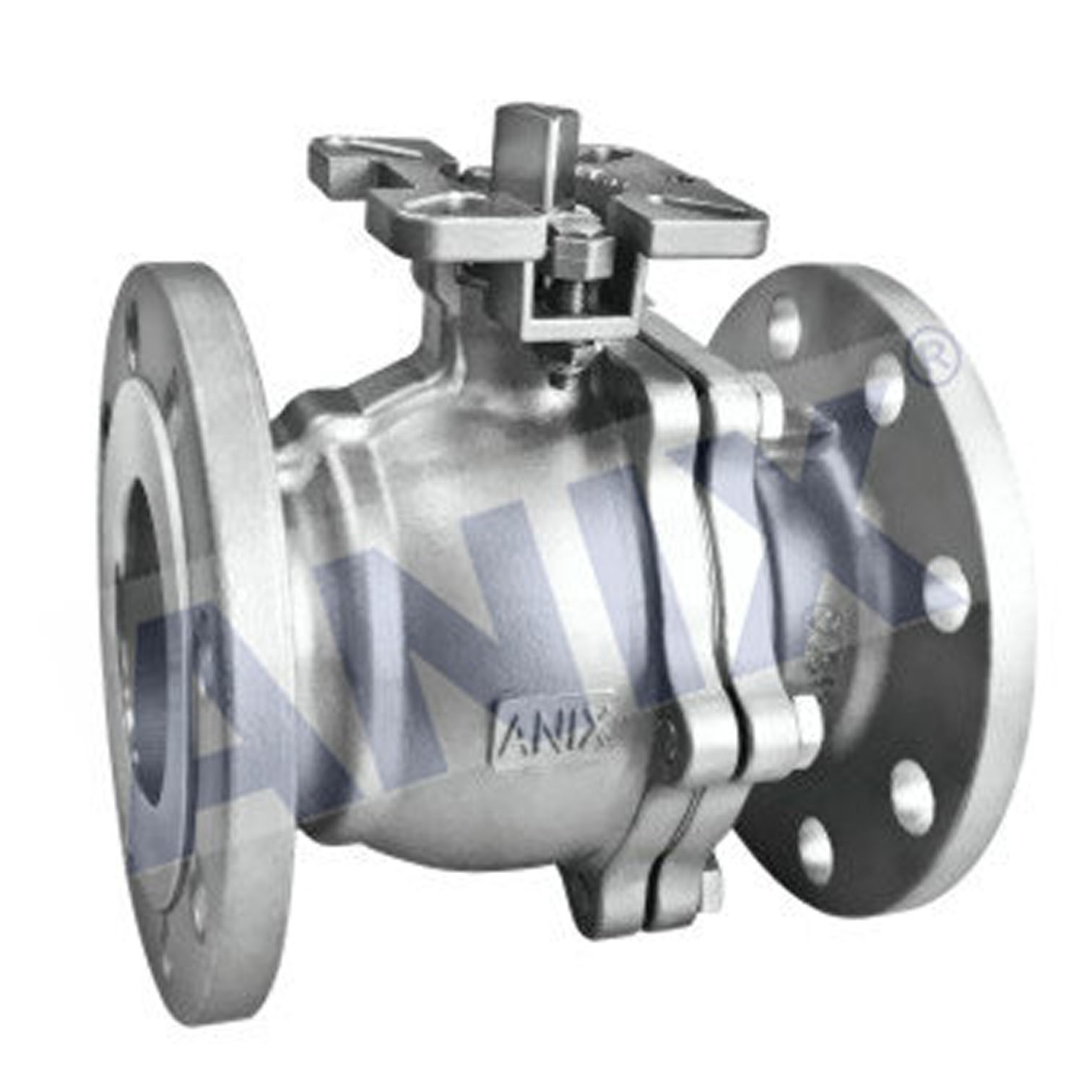

DIN High platform flange ball valve
Ball valve(flanged,wafer)
The German standard flange ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure;
it can also be customized according to the requirements of the clients or the working conditions.
Need to see more product information or to request high-quality print copy please contact us
Contact us|
Design standards |
|
Technical code: German standard Design standard: DIN3357 Structural length: DIN3202 Connecting flange: DIN2542-2546 Test and inspection: DIN3230 |
|
Performance Specification |
|
Nominal pressure: 1.6, 2.5, 4.0, 6.3Mpa Strength test: 2.4, 3.75, 6.0, 9.45Mpa Seal test: 1.76, 2.75, 4.4, 6.93Mpa Back seal test: 1.76, 2.75, 4.4, 6.93Mpa Gas seal test: 0.6Mpa CF8M(R)，CF3M(RL) Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL) Applicable media: water, steam, oil products, nitric acids and acetic acids Applicable temperature: -29℃ to 180℃ |
|

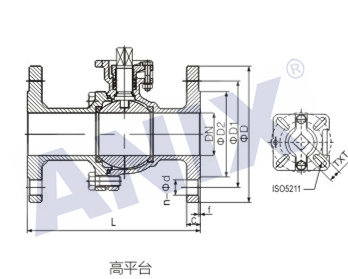

Product Structure |
 |
