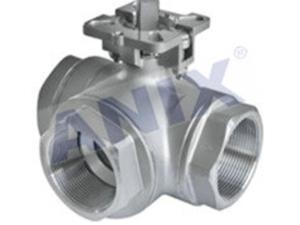

Female Thread high platform Tee Ball Valve

Screwed 、Clamp 、Welded vavle

There are two types of Anix female thread tee ball valves, L shaped and T shaped types. The L shaped pneumatic tee ball valve is suitable for switching the flow direction of the media and can get two channels vertical to each other interconnected; the T shaped pneumatic tee ball valve is suitable for diverting and converging the media and switching the flow direction. The T shaped tee can get all the three or two of the three channels interconnected with each other. Usually, the female thread tee ball valve is of two-seat structure; four-seat structure can also be used upon request by the users.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design standard: ASME B16.34
Structural length: DIN3202-M3
Connecting standard: ASBE M20.11(NPT), DIN2999& BS21, ISO228/1& ISO7/1
Test and inspection: API 598

Performance Specification

Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Strength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicsble temperature:-29~150°C

Applicsble media:Q14/15F-(16-64)C Water.Oil. Gas

                         Q14/15F-(16-64)P Nitric acid

                          Q14/15F-(16-64)R Acetic acid

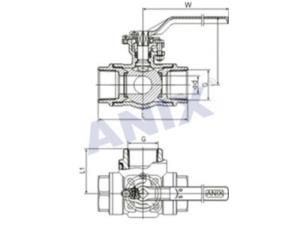

Product Structure
