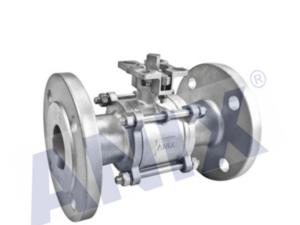

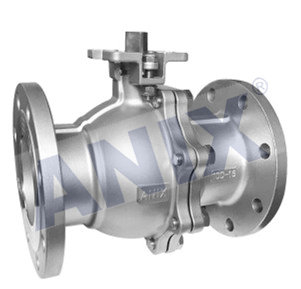

GB high platform flanged ball valve
Ball valve(flanged,wafer)
The national standard flange ball valve of Anix is manufactured on the basis of many years’experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure; it can also be customized according to the requirements of the clients or the working conditions.
Need to see more product information or to request high-quality print copy please contact us
Contact us|
Design standards |
|
Technical code: national standard Design standard: GB/T 12237 Structural length: GB/T 12221 Connecting flange: GB/T 9113 JB 79 Test and inspection: GB/T 12237 JB 9092 |
|
Performance Specification |
|
Nominal pressure: 1.6, 2.5, 4.0. 6.3Mpa Strength test: 2.4, 3.75, 6.0, 9.45Mpa Seal test: 1.76, 2.75, 4.4, 6.93Mpa Back seal test: 1.76, 2.75, 4.4, 6.93Mpa Gas seal test: 0.6Mpa Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL) Applicable media: water, oil, gas, chemical industry, power stations, etc. Applicable temperature: -29℃ to 180℃ |
|

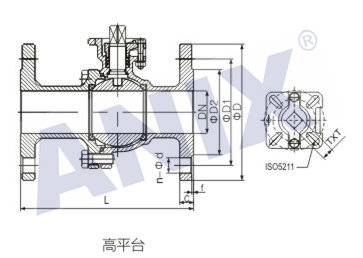

Product Structure |
 |
