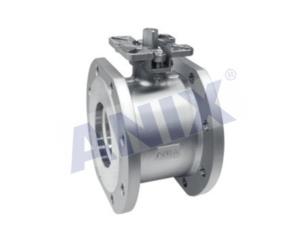

Whole Type flanged ball valve

Ball valve(flanged,wafer)

The integrated leakproof ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure; the fireproof and anti-static structure can also be customized according to the requirements of the customers or the working conditions; 4. the valve is designed to be of integrated structure to reduce the number of leakage points.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Technical code: American standard
Design standard: API6D API608
Structural length: ASME B16.10
Connecting flange: ASME B16.5
Test and inspection: API6D API598

Performance Specification
Nominal pressure: 150, 300, 600LB
Strength test: 3.0, 7.5, 15Mpa
Seal test: 2.2, 5.5, 11Mpa
Back seal test: 2.2, 5.5, 11Mpa
Gas seal test: 0.6Mpa
Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL)
Applicable media: water, oil, gas, chemical industry, power stations, etc.
Applicable temperature: -29℃ to 180℃

Product Structure
