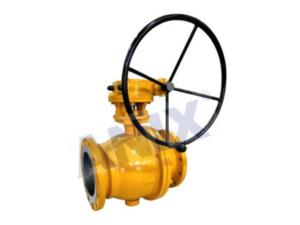

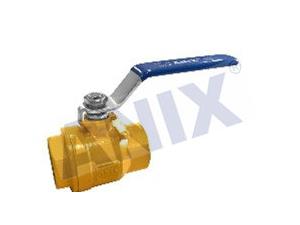

Gas ball valve

Ball valve(flanged,wafer)

flange ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves :
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure; it can also be customized according to the requirements of the clients or the working conditions.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design standsrds:GB/T 12237、 ASME.B16.34
Flanged Ends:GB/T 9113/HG/ASMEB16.5/JIS B2220
Thread ends:ISO7/1. ISO228/1,ANSI B1.20.1
Butt weld ends:GB/T 12224,ASME B16.25
Face to Face:GB/T 12221.ASME B16.10
Test and inspection:GB/T 13927 GB/T 26480 API598

Performance Specification
Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Strength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicsble media:Natural gas, liquefied gas,gas,ect.
Applicsble temperature:-29~150°C

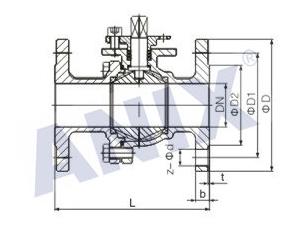

Product Structure
