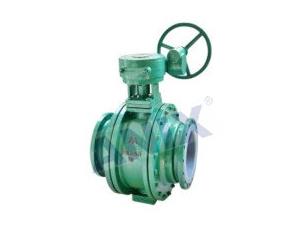

High performance gear operated fluorine lined ball valves
Ball valve(flanged,wafer)
Anix group fluorine-butterfly valves is medium inside the body are all made of the lining technology can achieve, lining materials commonly used FEP (F46) and PTFE (F4) PCTFE (F3) PO FRPP fluorine plastic, are widely used in petroleum, chemical industry, dyeing, pesticide, acid alkali production industries and other corrosive medium such as pipeline, but fluorine-butterfly valves by the limitations of temperature is larger, we lined with fluorine valves are: fluorine-butterfly butterfly valve, fluorine-butterfly valves.
Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail
|
Design standards |
|
Technical specification:GB Design Standard：AGB/T 12237、 ASMEB16.34 Face to Face:GB/T 12231、 ASMEB16.34 Flanged Ends：GB/T 9113 JB 79/HG/ASMEB16.5 Test and Inspection：GB/T 13927 GB/T 26480 API598 |
|
Performance Specification |
|
Nominal pressure:1.0,1.6,2.5MPa Strength testing pressure:1.5,2.4,3.8MPa Seal Test:1.1,1.8,2.8MPa Gas seat test:0.6MPa Valve body material:Castiron,Carbonsteel,Stainless,Stffi Applicsble medium:Acid alkali and Other Corrosive Media Applicsble temperature:-29~150°C |
|
|
|
|
