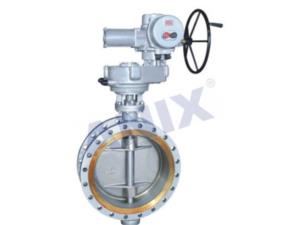

High performance metal hard seal electric butterfly valve

butterfly valve( flanged,wafer )

The flange type multi-layer metal hard seal butterfly valve of Anix has the following features:

1. U shaped stainless steel seal ring is used; the valve plate has certain elasticity so as to have good sealing with the butterfly plate no matter at high temperature or low temperature;

2. The valve is metal on metal line sealing valve; the sealing faces of the butterfly plate is made of stainless steel or hard alloy by buildup welding, and thus have good wearing resistant performance and long service life;

3. The butterfly plate is designed to be streamline type; the parameters of the through rod and the anti-wearing sleeve provide good sealing performance and temperature, pressure, wearing and corrosion resistant performance to the valve;

4. The connection method of the valve can be designed to be flange connection and clip connection;

5. The drive method can be manual, electric or pneumatic.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards

Technical specificationANSI
Design StandardASME B16.34

Face to FaceAPI 609
Flanged EndsASME B16.5
Test and InspectionAPI 598

Performance Specification

Nominal pressure:Class150/300

Strength test: 3.0Mpa  7.5Mpa

Seal Test: 2.2Mpa  5.5Mpa

Gas seal test: 0.6Mpa
Valve body material: WCB,CF8,CF8MDuplex Stainless Steel
Suitable medium: Water, steam, oil, acid corrosive media and dust particles

Suitable temperature:carbon steel 425,Stainless steel  600,Heat resistant steel 850

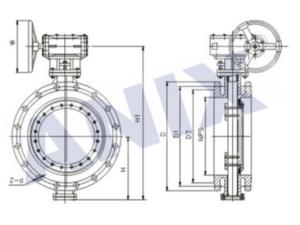

 Product Structure
