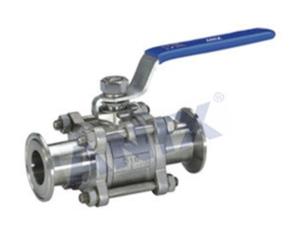

Sanitary extension Triclamp Ball Valve

sanitary valve

The sanitary quick ball valve of Anix is of three piece structure, easy for maintenance. The valve body is cast using advanced process introduced from Taiwan, reasonable in structure and elegant in appearance; the valve seat is of elastic seal structure, reliably sealed and easily opened and closed; the valve rod is of bottom mounting structure with back seal, and will not fly out in case of abnormal pressure rise inside the valve cavity. The valve can be equipped with ISO standard support platform, locking device, and 90° switch locating mechanism. The valve can thus be locked as required to prevent accidental operations. There are three drive modes, manual, electric and pneumatic modes.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design standard: ASME B16.34
Connecting standard: ISO 2852
Test and inspection: API 598

Performance Specification

Nominal pressure:PN0.6,1.0,1.6,2.0,2.5MPa
Strength testing pressure:PT0.9,1.5,2.4,3.0,3.8MPa
Seat testing pressure(low pressure):0.6MPa
Applicsble temperature:-29~150°C

Applicsble media:Q81F-(6-25)CWater.Oil. Gas

                         Q81F-(6-25)P Nitric acid

                         Q81F-(6-25)R Acetic acid

Product Structure
