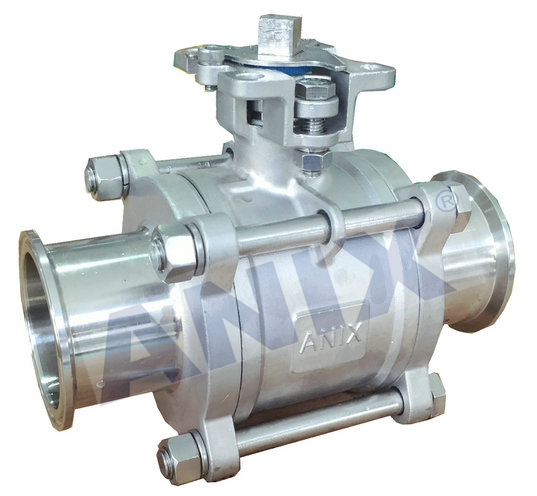

sanitary three piece high platform Ball Valve

sanitary valve

The sanitary quick ball valve of Anix is of three piece structure, easy for maintenance. The valve body is cast using advanced process introduced from Taiwan, reasonable in structure and elegant in appearance; the valve seat is of elastic seal structure, reliably sealed and easily opened and closed; the valve rod is of bottom mounting structure with back seal, and will not fly out in case of abnormal pressure rise inside the valve cavity. The valve can be equipped with ISO standard support platform, locking device, and 90° switch locating mechanism. The valve can thus be locked as required to prevent accidental operations. There are three drive modes, manual, electric and pneumatic modes.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail


Performance Specification

Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Strength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicsble temperature:-29~150°C

Applicsble media:Q41F-(16-64)C Water.Oil. Gas

                         Q41F-(16-64)P Nitric acid

                          Q41F-(16-64)R Acetic acid

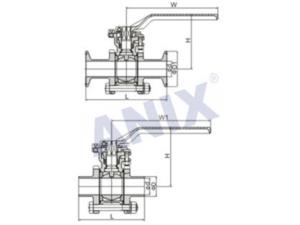

Product Structure
