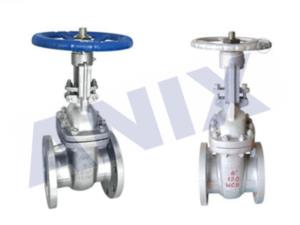

American Standard Gate Valve

Gate valve(flanged, welded)

The American standard gate valve of Anix has reliable sealing, good performance and elegant appearance, in accordance with advanced national and international standards. The gate plate and the valve seat are wearing, high temperature and corrosion resistant, and have good scratch resistant performance and long service life. Wedge type elastic gate plate structure is used; roller bearings are provided for medium and large diameters to realize easy opening and closing; the valve rod is subject to tempering and surface nitrogen treatment and thus has good corrosion resistant and scratch resistant performance. Different pipe flange standards and flange sealing face types can be used to meet the requirements of different projects and users. There are a complete range of materials to be used for the valve body, and the packing and gasket can be selected according to the actual working conditions or the requirements of the users. The valve is thus applicable to different working conditions with various pressure, temperature and media.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design & Manufacture as per: API600 ASME B16.34、BS 1414
Face to face dimension as per: ASME B16.10
Connection ends dimension as per:
ASME B16.5、ASME B16.47、JIS B2220
Inspection and test as per: ISO 5208、API 598、BS 6755

Performance Specification
Nominal pressure:150,300LB,10K,20K
Strength test:PT3.0,7.5,2.4,5.8MPa
Seal tese:2.2,5.5,1.5,4.0MPa
Gas seal test:0.6MPa
Valve body material:WCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL)
Suitable medium:water,steam,oil,products,nitric acid,acetic acid
Suitable temperature:-29°C~425°C

Product Structure
