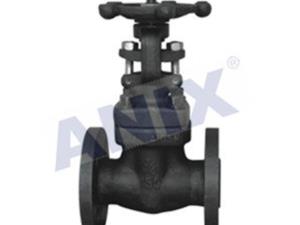

American Standard Forged Steel Gate
Gate valve(flanged, welded)
The American standard forged steel gate valve of Anix is of pressure self tightening seal structure. It is welding connection at two ends of the branch pipe of the valve. The valve flap and valve seat sealing faces are made of cobalt based hard alloy by plasma spray welding, and have good wearing and scratch resistant performance. The valve rod is subject to anti-corrosion nitrogen treatment and thus has good corrosion and scratch resistant performance.
Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail
|
Design standards |
|
Design manufacture as per: API 602、BS 5352、 ASME B16.34 Connection ends dimension as per: ASME B16.5 Inspection and test as per: API 598 |
|
Performance Specification |
|
Nominal pressure:150~1500LB Strength test:15XPN MPa Seal tese:1.1XPN MPa Gas seal test:0.6MPa Valve body material:A105(C),F304(P),F304(PL),F316(R),F316L(RL) Suitable medium:water,steam,oil,products,nitric Suitable temperature:-29°C~425°C |
|

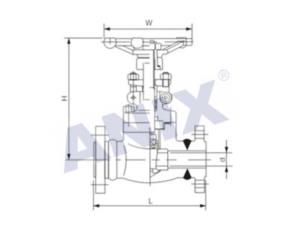

Product Structure |
 |
