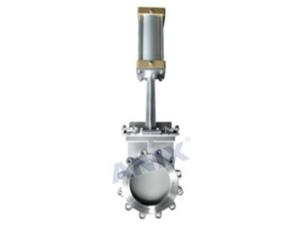

High performance pneumatic knife gate valve

Gate valve(flanged, welded)

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards
Design & Manufacture as per: JB/T8691、MSS SP-81
Face to face dimension as per: GB/T 15188.2、TAPPI TIS 405.8
Connection ends dimension as per: JB/T 79、ANSIB16.5、JIS B2220
Inspection and test as per: GB/T 13927、MSS SP-81、JB/T8691

Performance Specification
Nominal pressure:0.6.1.0.1.6MPa
Strength test:0.9.1.5.2.4MPa
Seal tese:0.7.1.1.1.8MPa
Gas seal test:0.6MPa
Valve body material:WCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL)
Suitable medium:Mortar mixture、Dtegs with、water proportion

Suitable temperature:-29°C~100°C

Product Structure
