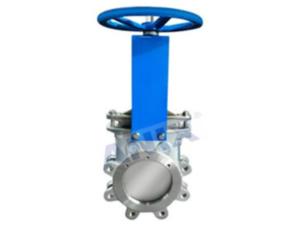

High performance manual knife gate valve

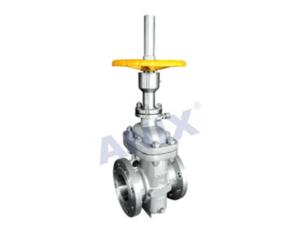

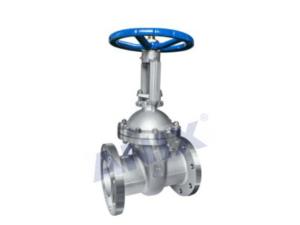

Gate valve(flanged, welded)
Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail
|
Design standards |
|
Design & Manufacture as per: JB/T8691、MSS SP-81 Face to face dimension as per: GB/T 15188.2、TAPPI TIS 405.8 Connection ends dimension as per: JB/T 79、ANSIB16.5、JIS B2220 Inspection and test as per: GB/T 13927、MSS SP-81、JB/T8691 |
|
Performance Specification |
|
Nominal pressure:0.6.1.0.1.6MPa Strength test:0.9.1.5.2.4MPa Seal tese:0.7.1.1.1.8MPa Gas seal test:0.6MPa Valve body material:WCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL) Suitable medium:Mortar mixture、Dtegs with、water proportion Suitable temperature:-29°C~100°C |
|
Product Structure |
 |
