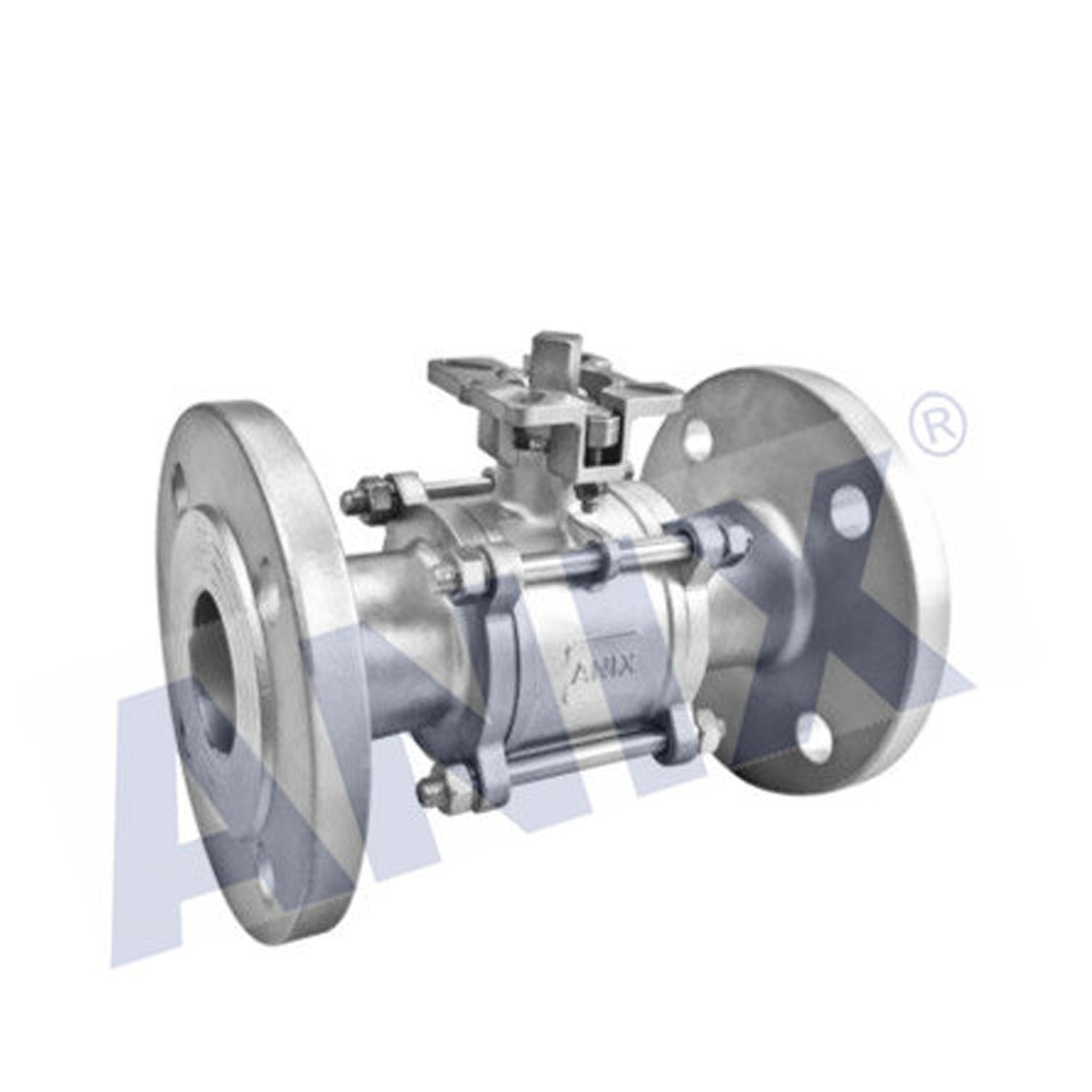

Three piece flanged high platform ball valve

Ball valve(flanged,wafer)

The three piece flange ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure; the fireproof and anti-static structure can also be customized according to the requirements of the customers or the working conditions; 4. the valve is designed to be of three piece structure to be easy for maintenance.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Performance Specification
Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Strength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicsble media:Q41F-(16-64)C Water.Oil. Gas
Applicsble temperature:-29~150°C
Applicsble media:Q41F-(16-64)P Nitric acid
Q41F-(16-64)R Acetic acid
Applicsble temperature:-29°C~150°C

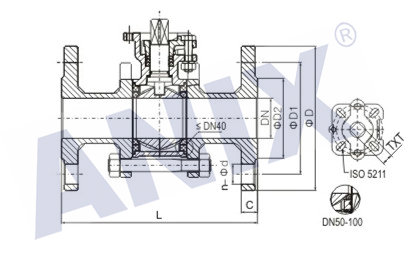

Product Structure
