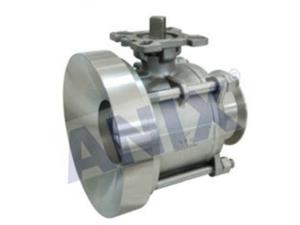

tank bottom emptying valve

Ball valve(flanged,wafer)

The tank bottom ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure; the fireproof and anti-static structure can also be customized according to the requirements of the customers or the working conditions; 4. the valve is designed to be of three piece structure to be easy for maintenance.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Performance Specification

Nominal pressure:PN1.6,2.5,4.0,6.4MPa
Strength testing pressure:PT2.4,3.8,6.0,9.6MPa
Seat testing pressure(low pressure):0.6MPa
Applicsble media: Water.Oil. Gas
Applicsble temperature:-29~150°C
Applicsble media: Nitric acid
                           Acetic acid
