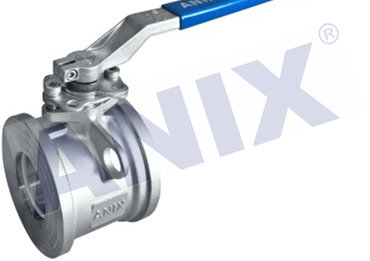

Thin type flange ball valve

Ball valve(flanged,wafer)

The thin type flange ball valve of Anix is manufactured on the basis of many years’ experience in development and manufacture of ball valves:
1. the valve seat is designed to be of double lip seal structure to enhance sealing and reduce the operation torque; the valve seat can be made of various materials, suitable for more areas;
2. the valve rod is designed to be of explosion proof structure and bottom mounting type to prevent flying out under pressure; PTFE guide is also used to reduce friction on the valve rod and reduce the operation torque;
3. the valve is designed to be of fireproof and anti-static structure; the fireproof and anti-static structure can also be customized according to the requirements of the customers or the working conditions; 4. the valve is designed to be of integrated structure to reduce the number of leakage points and require less space for installation.

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Performance Specification

Nominal pressure:PN1.6,2.5,4.0,6.4MPa

Strength testing pressure:PT2.4,3.8,6.0,9.6MPa

Seat testing pressure(low pressure):0.6MPa

Applicsble media:Q41F-(16-64)C Water.Oil. Gas

Applicsble temperature:-29~150°C

Applicsble media:Q41F-(16-64)P Nitric acid  Q41F-(16-64)R Acetic acid

Applicsble temperature:-29°C~150°C

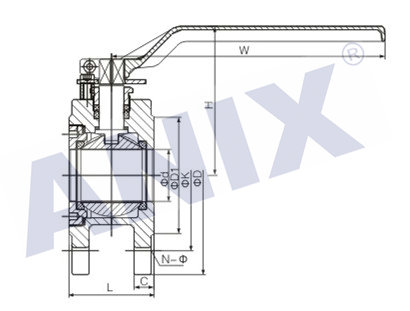

Product Structure
