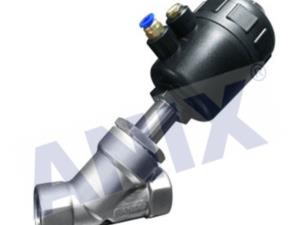

High performance pneumatic stainless steel Angle seat valve

Ball valve(flanged,wafer)

Need to see more product information or to request high-quality print copy please contact us
Contact us
Product Detail

Design standards

Design manufacture as per:GB/T 12235、ASME B16.34

End flange dinebsion:JB/T 79、ASME B16.5、JIS B2220

The thread ends oonform to ISO7-1、ISO 228-1etc.

The buit weld ends conform toGB/T 12224、ASME B16.25

Clamp ends conform toISO、DIN、IDF

Pressure test asGB/T 13927、API598

Performance Specification
Nominal pressure:0.6-1.6MPa,150LB,10K
Strength test:PNx1.5MPa
Seal tese:PNx1.1MPa
Gas seal test:0.6MPa
Valve body material:CF8(P),CF3(PL),CF8M(R),CF3M(RL)
Suitable medium:water,steam,oil,products,nitric
Suitable temperature:-29°C-150°C

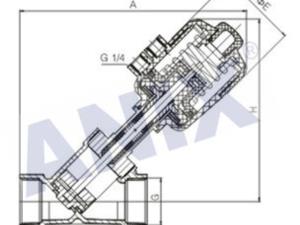

Product Structure
